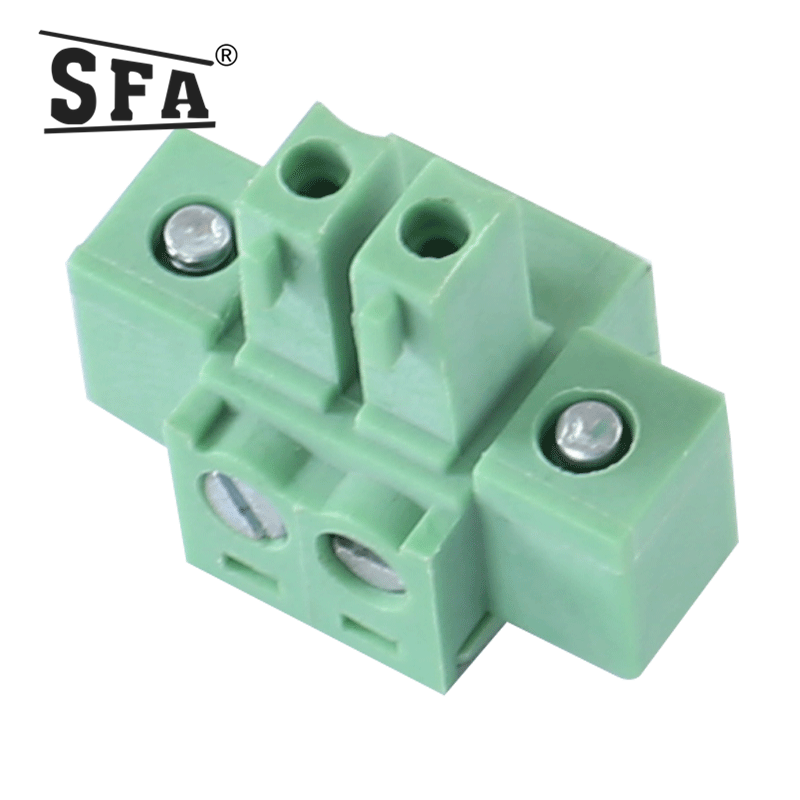

Product Name:Q01KM
Product Number:
|
NAME |
Q01KM |
|
|
PITCH |
3.5/3.81mm |
|
|
Standard |
UL |
CE |
|
Electrical |
||
|
Rated voltage |
300V |
250V |
|
Rated current |
8A |
7A |
|
Wire range |
28-16AWG0.5-1.5mm2 |
|
|
Withstanding voltage |
AC2000V-1Min |
|
|
Mechanical |
||
|
Torque |
0.2Nm（1.7Lb-In） |
|
|
Ambient temperature |
-40℃~ +105℃ |
|
|
Strip length |
7mm |
|
|
Material |
||
|
Housing |
PA66 |
|
|
Screws |
M2,Steel，Cr3+Zn Plated |
|
|
Contact |
Phosphor bronze（磷青铜） |
|
|
Cage |
Brass，Ni-plated |
|
