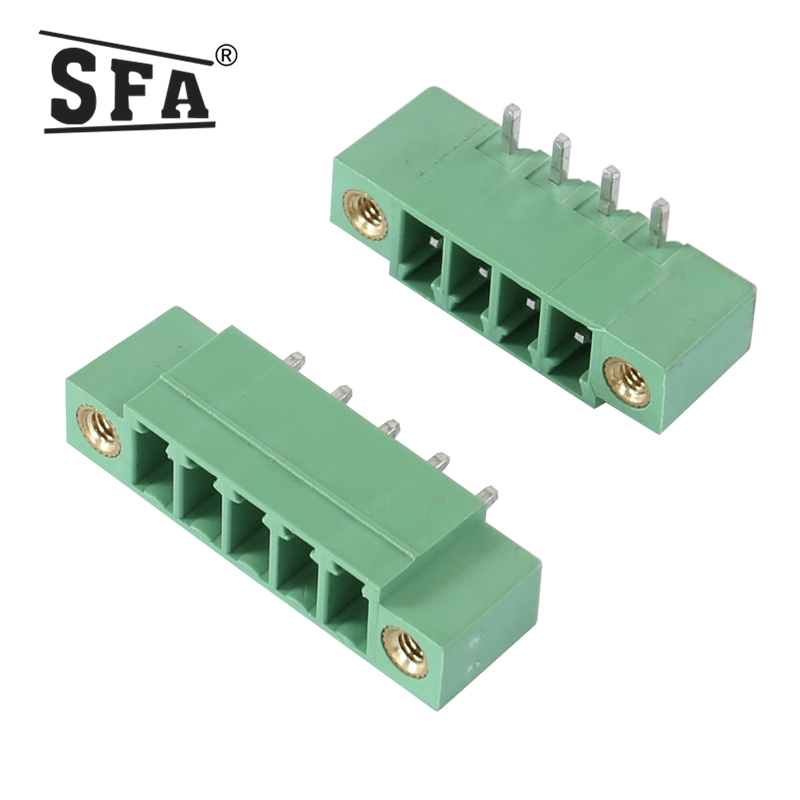

Product Name:Q01VM/Q01RM
Product Number:
|
NAME |
Q01VM/Q01RM |
|
|
PITCH |
3.5/3.81mm |
|
|
Standard |
UL |
CE |
|
Electrical |
||
|
Rated voltage |
300V |
250V |
|
Rated current |
8A |
7A |
|
Wire range |
- |
|
|
Withstanding voltage |
AC2000V-1Min |
|
|
Mechanical |
||
|
Torque |
- |
|
|
Ambient temperature |
-40℃~ +105℃ |
|
|
Strip length |
- |
|
|
Material |
||
|
Housing |
PA66 |
|
|
Screws |
- |
|
|
Contact |
M2,Ni-plated |
|
|
Cage |
Brass，Ni-plated |
|
