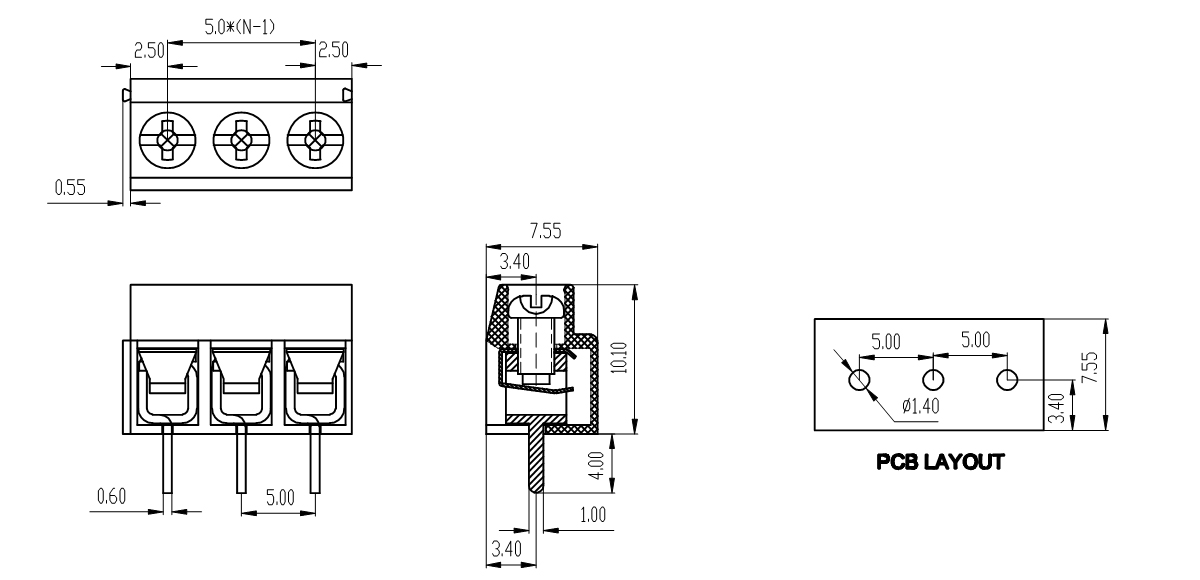

Product Name:QB01
Product Number:
|
Name |
QB01 |
|
|
PITCH |
5.0mm |
|
|
Standard |
UL |
CE |
|
Electrical |
||
|
Rated voltage |
300V |
250V 450V |
|
Rated current |
10A |
18A |
|
Wire range |
26-14AWG2.5mm2 |
|
|
Withstanding voltage |
AC2500V-1Min |
|
|
Mechanical |
||
|
Torque |
0.4Nm（3.5Lb-In） |
|
|
Ambient temperature |
-40℃~ +105℃ |
|
|
Strip length |
7mm |
|
|
Material |
||
|
Housing |
PA66 |
|
|
Screws |
M2,Steel，Cr3+Zn Plated |
|
|
Pin header |
Brass，Tin-plated |
|
|
Wire guard |
Stainless steel |
|
