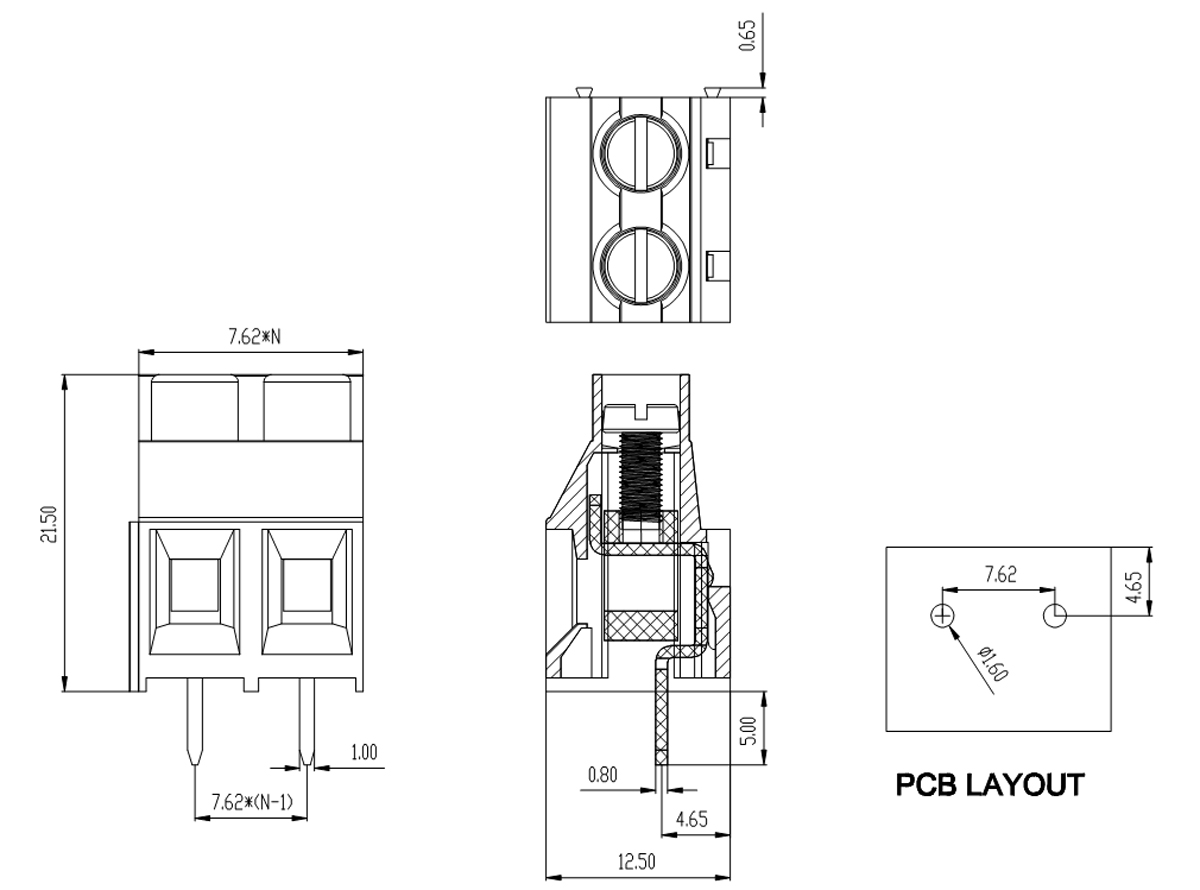

Product Name:QA636
Product Number:
|
Name |
QA636 |
|
|
PITCH |
7.62mm |
|
|
Standard |
UL |
CE |
|
Electrical |
||
|
Rated voltage |
300V |
630V |
|
Rated current |
30A |
32A |
|
Wire range |
26-10AWG2.5mm2 |
|
|
Withstanding voltage |
AC2000V-1Min |
|
|
Mechanical |
||
|
Torque |
0.5Nm（4.4Lb-In） |
|
|
Ambient temperature |
-40℃~ +105℃ |
|
|
Strip length |
8mm |
|
|
Material |
||
|
Housing |
PA66 |
|
|
Screws |
M2,Steel，Cr3+Zn Plated |
|
|
Contact |
Brass，Tin-plated |
|
|
Cage |
Brass，Ni-plated |
|
