产品展示

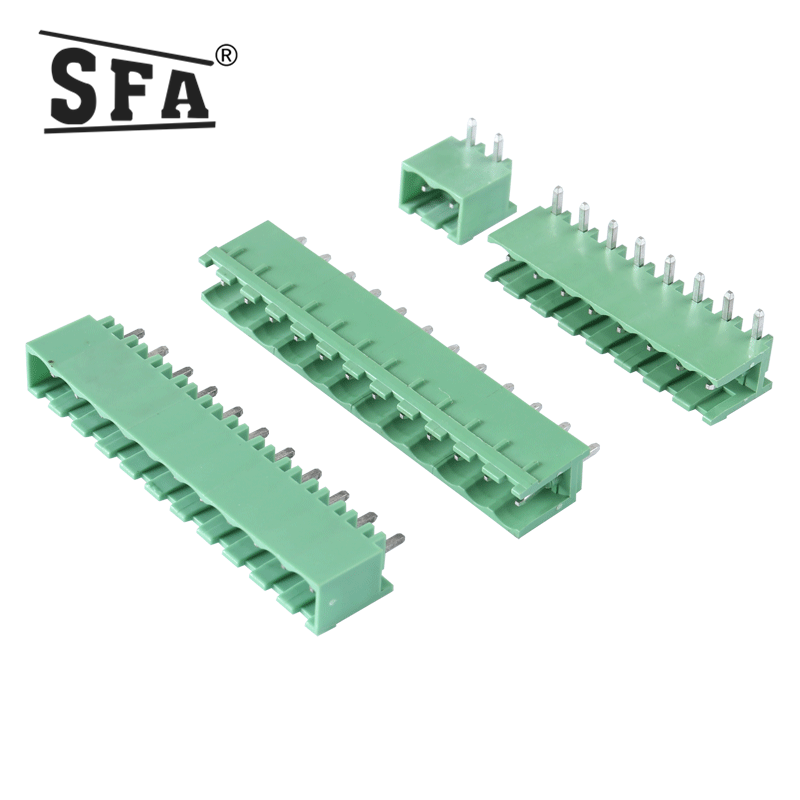

产品名称：Q02V/R/C
产品编号：
|
产品名称/NAME |
Q02V/R/C |
|
|
产品间距/PITCH |
5.0/5.08mm |
|
|
Standard/参考标准 |
UL |
CE |
|
电气性能/Electrical |
||
|
额定电压/Rated voltage |
300V |
250V |
|
额定电流/Rated current |
15A |
20A |
|
导线线径/Wire range |
- |
|
|
耐电压/Withstanding voltage |
AC2000V-1Min |
|
|
机械性能/Mechanical |
||
|
扭矩力/Torque |
- |
|
|
温度范围/Ambient temperature |
-40℃~ +105℃ |
|
|
剥线长度/Strip length |
- |
|
|
材质和电镀/Material |
||
|
塑件/Housing |
PA66 |
|
|
螺丝/Screws |
- |
|
|
触点材料/Contact |
- |
|
|
方盒/Cage |
Brass，Ni-plated |
|
